xpp 1 volt
Audiophile loop

RightMark Audio Analyzer test


Testing chain: External loopback (line-out - line-in)
Sampling mode: 16-bit, 48 kHz




Summary

Testxpp 1 voltAudiophile loop
Frequency response (from 40 Hz to 15 kHz), dB: +0.02, -0.14+0.01, -0.08
Noise level, dB (A): -88.4-94.0
Dynamic range, dB (A): 88.994.0
THD, %: 0.3000.0016
IMD + Noise, %: 0.2830.0060
Stereo crosstalk, dB: -77.1-94.1



Frequency response

Spectrum graph

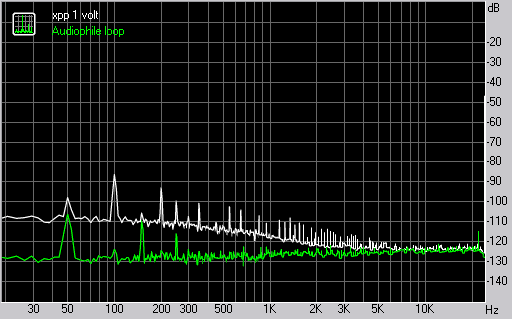

Noise level

Spectrum graph

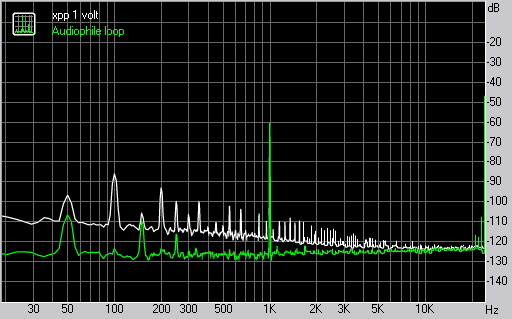

Dynamic range

Spectrum graph

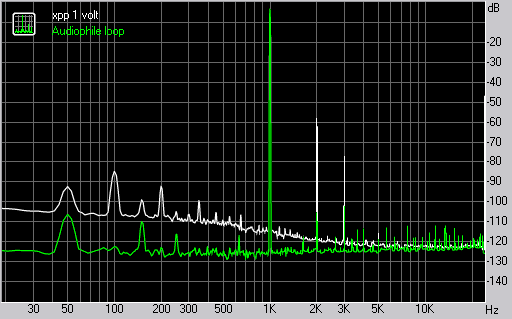

THD + Noise (at -3 dB FS)

Spectrum graph

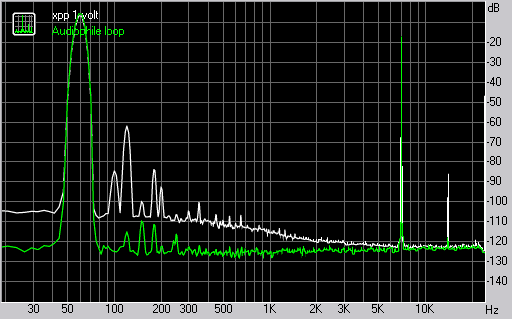

Intermodulation distortion

Spectrum graph

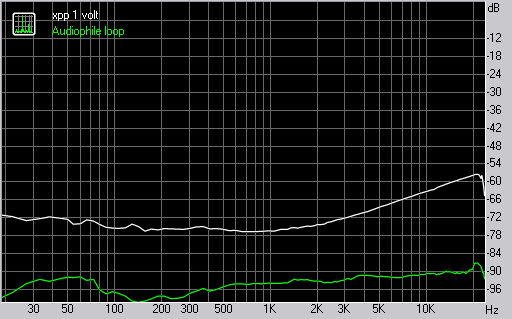

Stereo crosstalk

Spectrum graph



This report was generated by RightMark Audio Analyzer 6.0
